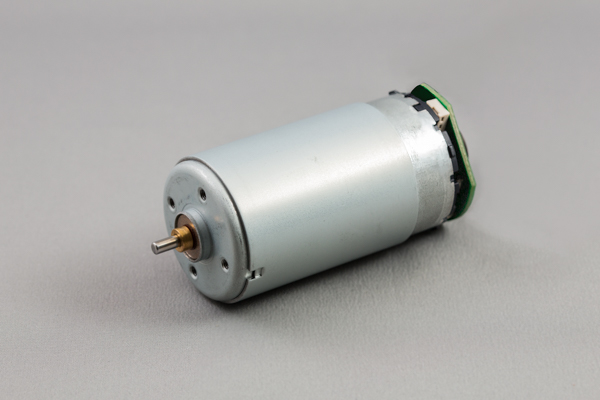

A small DC motor that has a proven track record for opening and closing windows in addition to automotive applications.
性能表
* You can scroll to see it.
Model Name 空載 | No load 空載 | Max Efficiency 最大效率 | Stall 止速 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
Voltage 電壓 | Speed 轉速 | Current 電流 | Torque 扭力 | Speed 轉速 | Current 電流 | Output 輸出功率 | Eff 效率 | Torque 扭力 | Current 電流 | |
| V | rpm | A | mN-m | rpm | A | W | ％ | mN-m | A | |
| 3666-105-GF-3 | 12.5 | 4470 | 0.17 | 23.72 | 3840 | 1.06 | 9.58 | 72 | 169.5 | 6.53 |
| 3666-140-GF-3 | 12.5 | 3400 | 0.15 | 19.27 | 2820 | 0.71 | 5.71 | 64 | 113.3 | 3.46 |
|---|
關于電機性能

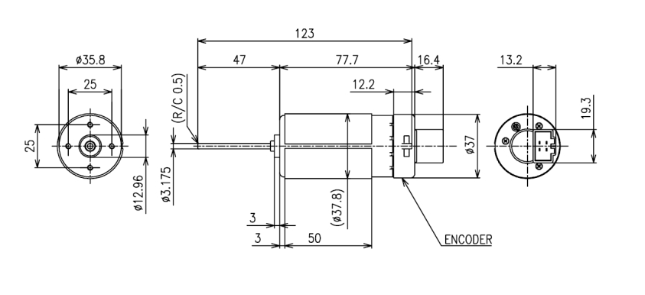

尺寸
本網站描述的產品規格是實現客戶要求的產品規格的例子。詳情請與我們的銷售辦事處聯系。

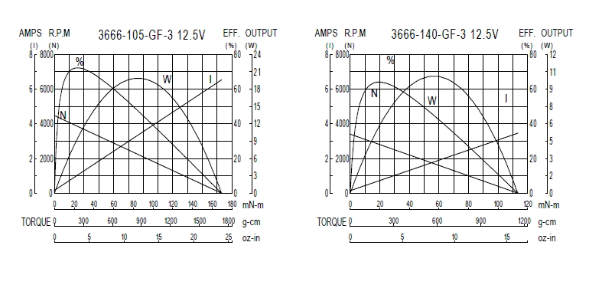

性能圖
